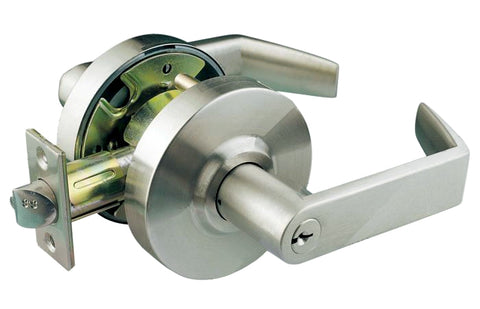

ANSI / BHMA A156.2 - 2003 Grade 2 Handle

Single One Action Open

Weight: 4LB

• Item Number: BK-58330SC-ET
• All metal construction. Cylindrical structure, solid zinc lever and rose.
• Removable 6 pin solid brass cylinder.
• Heavy duty，3.5" dia. Rose.
• All necessary mounting Screws and latches included.
• No exposed mounting screw.
• Fits doors 1-3/8" ~ 1-3/4” (35mm ~ 45mm).
• Standard 2 3/4" (70mm) or Option 2 3/8" (60mm) fixed latch(center of the hole to the edge), Stainless steel latch bolt, UL rated (3hours). Furnished with 1 1/8" faceplate on latch.
• ASA strike plate is available
• Easy installation. Fits standard 2 1/8" (54mm) installation hole bore.
• Each handleset has two keys, KW1 keyway Rekeyable.
• Warranty: 10 Yr. mechanism, 5 Yr. finish
• Key options: keyed differently, same key alike, master key
• Also available: matching passage, privacy and deadbolt locksets.
