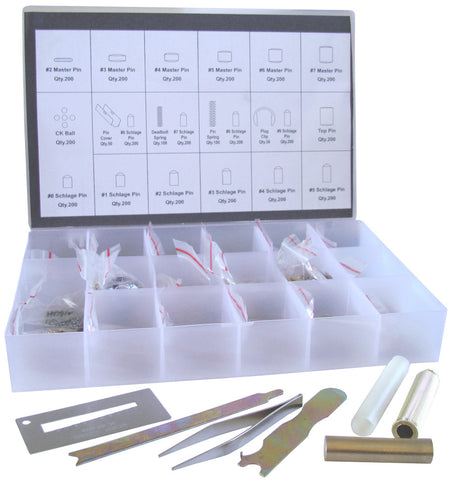

Schlage Rekey 5 Tools and 200 Pins Series Kit Box 002
- Item Number : BK-SR-002
- Create Key Alike and Master Key For Schlage Keyed Entry Locks
- 5 Tools: Key gauge, plastic follower bar, deadbolt cap remover, plug clip remover, lock opening tool
- Bottom Pins #0-9: 200 pieces for each, Master Pin # 2-7: 200 for each; Top pin :200
- Parts: Plug clip 50, pin spring 100, deadbolt Spring 100, pin cover 50 , CK ball 200
** The deadbolts cap remover has 12 pins, it works for most of the schlage deadbolts. But there are some of schalge deadbolt may need 14 pins remover.
Download Schlage Rekey Instruction Manual
Schlage Bottom Pins Size
| Pin No | 0 | 1 | 2 | 3 | 4 |
| Length(mm) | 4.191 | 4.572 | 4.953 | 5.334 | 5.715 |
| Length(inch) | 0.165 | 0.18 | 0.195 | 0.21 | 0.225 |
| Pin No | 5 | 6 | 7 | 8 | 9 |
| Length(mm) | 6.096 | 6.477 | 6.858 | 7.239 | 7.62 |
| Length(inch) | 0.24 | 0.255 | 0.27 | 0.285 | 0.3 |
Schlage Master Pins Size
| Pin No | 2 | 3 | 4 | 5 | 6 | 7 |
| Length(mm) | 0.762 | 1.143 | 1.524 | 1.905 | 2.286 | 2.667 |
| Length(inch) | 0.030 | 0.045 | 0.060 | 0.075 | 0.090 | 0.105 |
Top Pin size 4.572 mm, 0.180 inch
Baldwin, Dexter, Emtek & Pegasus locks are compatible with Schlage pin
