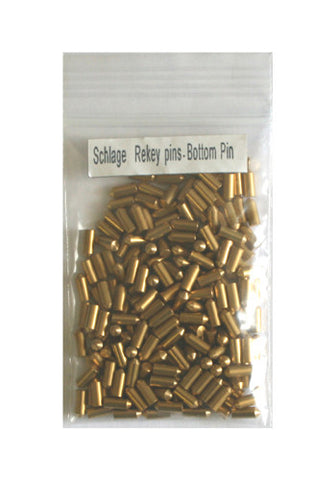

Schlage Rekey Bottom 200 Pins
Schlage Bottom Pins Size
| Pin No | 0 | 1 | 2 | 3 | 4 |
| Length(mm) | 4.191 | 4.572 | 4.953 | 5.334 | 5.715 |
| Length(inch) | 0.165 | 0.18 | 0.195 | 0.21 | 0.225 |
| Pin No | 5 | 6 | 7 | 8 | 9 |
| Length(mm) | 6.096 | 6.477 | 6.858 | 7.239 | 7.62 |
| Length(inch) | 0.24 | 0.255 | 0.27 | 0.285 | 0.3 |
Top Pin size 4.572 mm, 0.180 inch
Baldwin, Dexter, Emtek & Pegasus locks are compatible with Schlage pin
Download Schlage Rekey Instruction Manual
